斜齒輪蝸輪蝸桿減速機電機
網站首頁 > BOSERL減速機 > 齒輪蝸輪蝸桿減速機廠家 > S系列減速機廠家

S37DRN63MS4詳細信息

prevnext

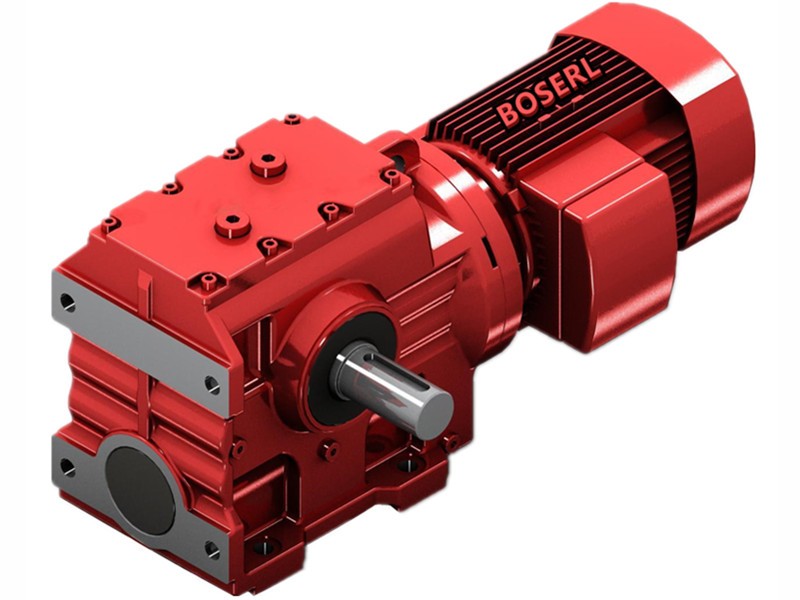

S37DRN63MS4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：攪拌44噸負載電機減速機_S37DRN63MS4_S37DRE63MS4

S37DRN63MS4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
S37DRN63MS4157.430.12KW8.80rpm74N.m12.5kg3000N1.25
S37DRN63MS4144.400.12KW9.60rpm68N.m12.5kg3000N1.35
S37DRN63MS4122.940.12KW11.0rpm60N.m12.5kg3000N1.55
S37DRN63MS4106.000.12KW13.0rpm52N.m12.5kg3000N1.70
S37DRN63MS498.800.12KW14.0rpm49N.m12.5kg3000N1.75
S37DRN63MS486.36
0.12KW16.0rpm44N.m12.5kg3000N1.95
S37DRN63MS480.960.12KW17.0rpm41N.m12.5kg3000N2.10
S37DRN63MS471.440.12KW19.0rpm37N.m12.5kg3000N2.30
S37DRN63MS463.330.12KW22.0rpm35N.m12.5kg3000N2.30
S37DRN63MS455.930.12KW25.0rpm33N.m12.5kg3000N2.50
S37DRN63MS451.300.12KW27.0rpm33N.m12.5kg3000N2.50
S37DRN63MS443.680.12KW32.0rpm28N.m12.5kg3000N2.90
S37DRN63MS437.660.12KW37.0rpm24N.m12.5kg3000N3.20
S37DRN63MS435.100.12KW39.0rpm23N.m12.5kg3000N3.40
S37DRN63MS430.680.12KW45.0rpm20N.m12.5kg3000N3.70
S37DRN63MS428.760.12KW48.0rpm19N.m12.5kg3000N3.90
S37DRN63MS425.380.12KW54.0rpm17N.m12.5kg3000N4.40
S37DRN63MS422.50
0.12KW61.0rpm15N.m12.5kg3000N4.80
S37DRN63MS419.890.12KW69.0rpm14N.m12.5kg3000N3.60
S37DRN63MS418.240.12KW76.0rpm13N.m12.5kg3000N3.90
S37DRN63MS415.530.12KW89.0rpm11N.m12.5kg2870N4.40

S37DRE63MS4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
S37DRE63MS4157.430.12KW8.80rpm74N.m12.5kg3000N1.25
S37DRE63MS4144.400.12KW9.60rpm68N.m12.5kg3000N1.35
S37DRE63MS4122.940.12KW11.0rpm60N.m12.5kg3000N1.55
S37DRE63MS4106.000.12KW13.0rpm52N.m12.5kg3000N1.70
S37DRE63MS498.800.12KW14.0rpm49N.m12.5kg3000N1.75
S37DRE63MS486.36
0.12KW16.0rpm44N.m12.5kg3000N1.95
S37DRE63MS480.960.12KW17.0rpm41N.m12.5kg3000N2.10
S37DRE63MS471.440.12KW19.0rpm37N.m12.5kg3000N2.30
S37DRE63MS463.330.12KW22.0rpm35N.m12.5kg3000N2.30
S37DRE63MS455.930.12KW25.0rpm33N.m12.5kg3000N2.50
S37DRE63MS451.300.12KW27.0rpm33N.m12.5kg3000N2.50
S37DRE63MS443.680.12KW32.0rpm28N.m12.5kg3000N2.90
S37DRE63MS437.660.12KW37.0rpm24N.m12.5kg3000N3.20
S37DRE63MS435.100.12KW39.0rpm23N.m12.5kg3000N3.40
S37DRE63MS430.680.12KW45.0rpm20N.m12.5kg3000N3.70
S37DRE63MS428.760.12KW48.0rpm19N.m12.5kg3000N3.90
S37DRE63MS425.380.12KW54.0rpm17N.m12.5kg3000N4.40
S37DRE63MS422.50
0.12KW61.0rpm15N.m12.5kg3000N4.80
S37DRE63MS419.890.12KW69.0rpm14N.m12.5kg3000N3.60
S37DRE63MS418.240.12KW76.0rpm13N.m12.5kg3000N3.90
S37DRE63MS415.530.12KW89.0rpm11N.m12.5kg2870N4.40

S37DRN63MS4減速機電動機類型：

S..DR..底腳安裝斜齒輪自鎖減速機

SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機

SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機

SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機

SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機

SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機


S37DRN63MS4減速機電動機安裝尺寸圖紙



S37DRN63MS4減速機電動機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約

S系列減速機應用案例展示：

關鍵詞:S系列減速機_GS蝸輪蝸桿減速機電機一套_具有自鎖功能減速器與電機_有自鎖功能減速機_S蝸輪蝸桿減速機_S系列減速機生產廠家

S系列減速機型號：S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97減速機

S系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間


如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:   攪拌44噸負載電機減速機 S37DRN63MS4 S37DRE63MS4
